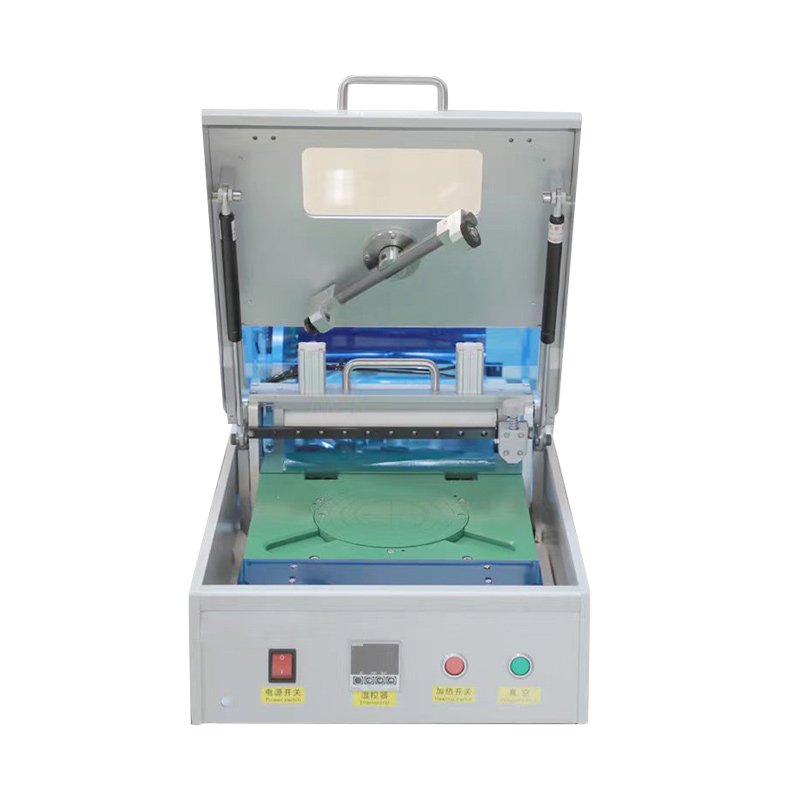

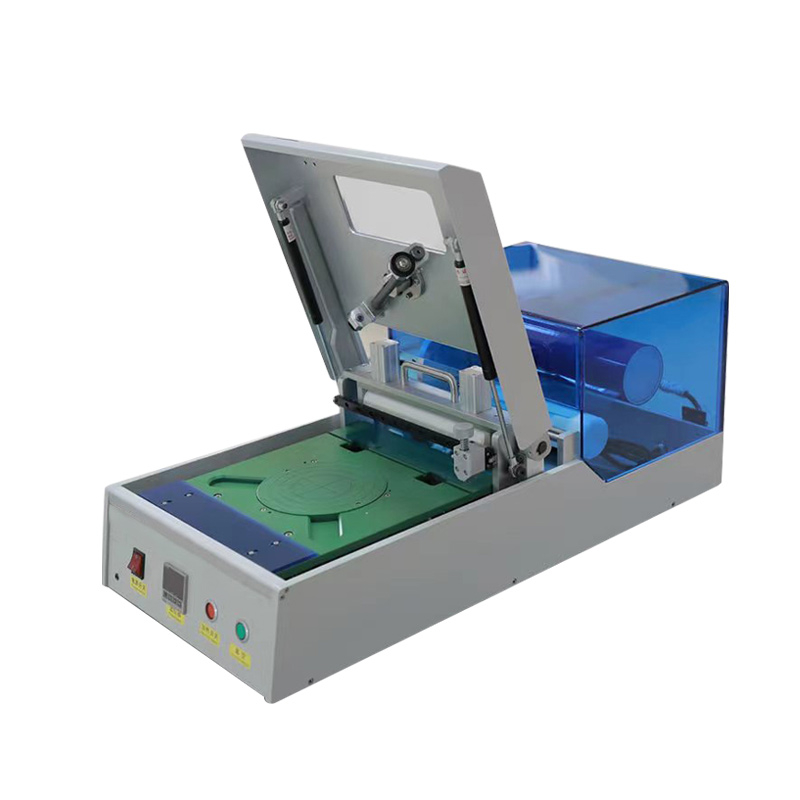

CY-TM600 Manual Laminating Machine

The manual laminating machine is designed for the lamination process of wafers (sheets), QFNs, glass, substrates, and other materials before cutting. It is equipped with precision rails and an imported temperature control system, ensuring stable performance and easy, efficient operation.

Inquire Now Next Product

Product Features

Wide Application: Suitable for blue film, UV film, PET substrate films, and other single/double-layer films.

Compatible with MODTF2 Series Frames.

Anti-Static Teflon-Coated Work Plate: Effectively protects chips from static damage.

Heated Work Plate: Enhances the adhesive strength of the film.

Adjustable Work Plate Height: Spring-loaded to accommodate products of varying thicknesses.

Pressure Control: The roller pressure is adjustable via air pressure, providing constant and controllable pressure with digital display.

Equipped with Circular and Cross-Cutting Blades: Imported blades for longer service life.

Hydraulic Spring Support for Top Cover: Provides effortless operation and ensures safety.

Purchase Information

If you are interested in our manual laminating machine, please feel free to contact us for more information and pricing.

Phone: +86 18516380382

Email: Jimmy@cysitech.com

Contact Person: Jimmy Hao

WeChat: +86 18516380382

WhatsApp: +86 13939946898

Technical Parameters

Parameter name	Parameter description
Product name	Glue dissolving machine
Product model	CY-TM600
Operating voltage	AC220V, 2.0KW
Rated power	0.7KW
Suitable size	6 inches and below
Film pasting error	±1mm
Compressed air	0.5-0.7MPa
Air flow	≤46L/min
Film cutting method	Cross-cut or circular cutting
Dimensions	740350290mm
Weight	50KG
Applicable film	Single layer blue film, double layer UV film
Film pasting method	Manual
Working surface	Teflon treatment, protection work
Production capacity	60pcs/h (theoretical value)
