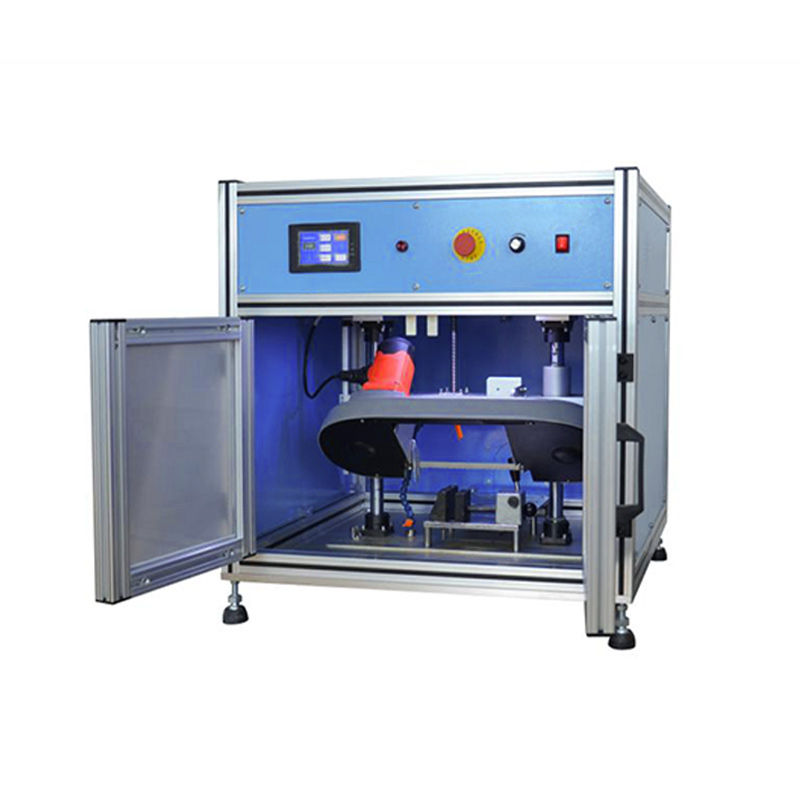

SYJ-100D low-speed metallographic sample cutting machine is mainly used in the field of material research. It is suitable for cutting unhardened ferrous metals and non-ferrous metals, and can also be used for small-scale production in factories. The machine has the characteristics of high processing accuracy, stable and reliable performance, simple operation and wide application range. This machine is used in colleges and universities, scientific research institutes and production fields.
This equipment has the advantages of small size, wide application range and energy saving;

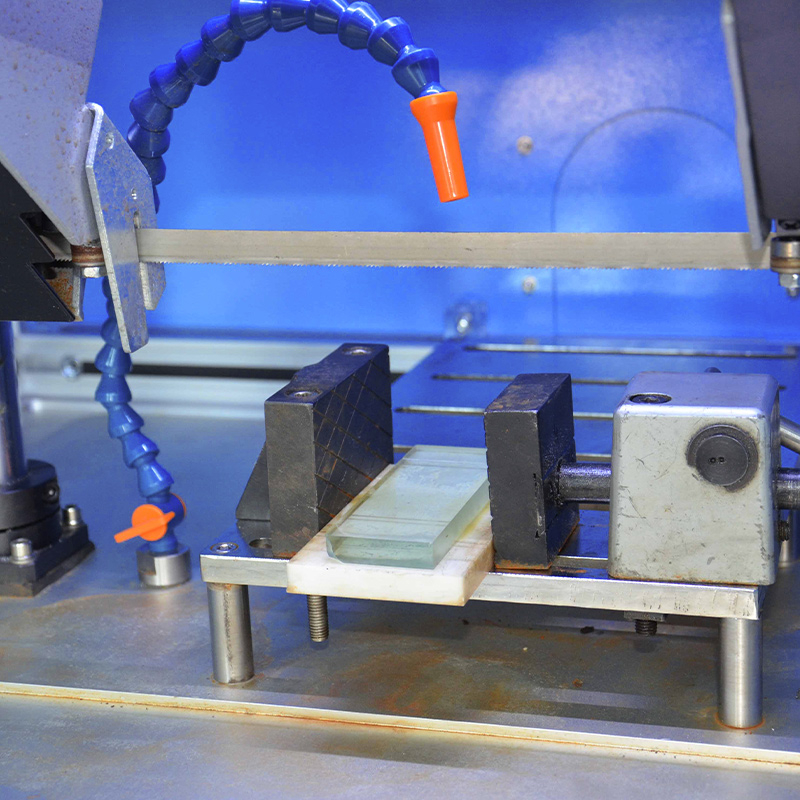

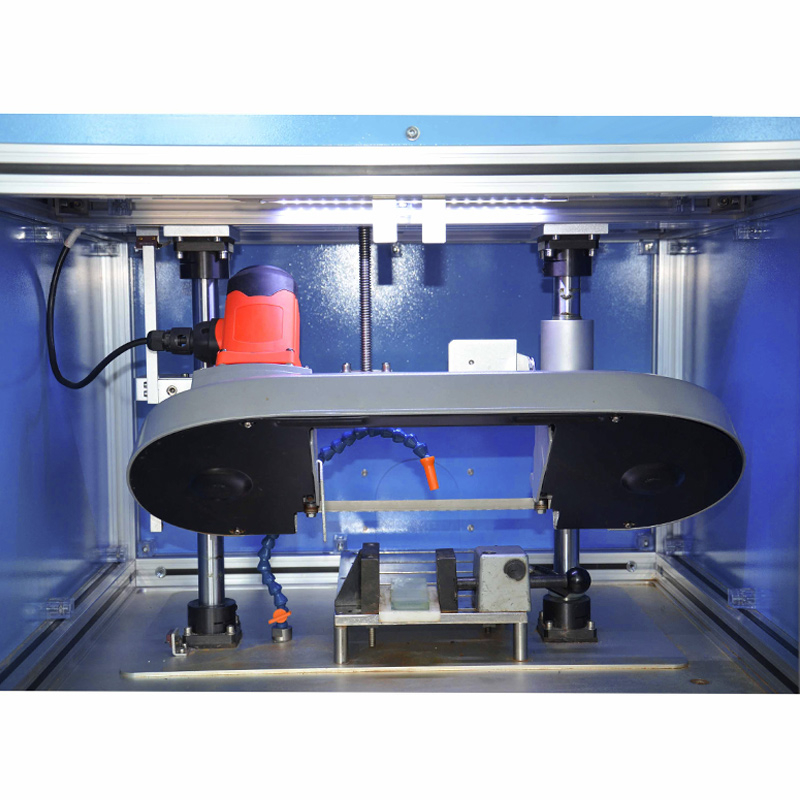

It adopts electric diamond band saw cutting, which is suitable for processing samples of various materials such as unhardened ferrous metals and non-ferrous metals, and is not limited by the conductivity of the sample. At the same time, it has the advantages of high cutting accuracy, smooth cutting surface and small edge damage.
Product name | low-speed metallographic sample cutting machine |
Product model | CY-100D |
Main parameters | 1. Power supply: 220V, 50HZ 2. Cutting saw speed: 1-190r/min 3. Cutting speed: 0.05-40mm/min 4. Z-axis travel: 1-100mm 5. Z-axis return speed: 1-100mm/min 6. Maximum workpiece size for cutting: Cube 100×100mm; Cylinder φ100mm |
Product specifications | Size: 800×800×700mm; Net weight: about 115kg |
Functions and uses | 1. Suitable for cutting brittle materials such as glass, ceramics, jade, marble, concrete, etc.; 2. Biological plasticized specimen slicing (human and animal organs, jaw soft and hard tissue slicing, implant observation, dental crowns and bridges, teeth and other histological specimens) 3. Orthopedic soft and hard tissue slicing (femur, hip joint, vertebral body and other living tissues and hard tissues, bone histological samples with implants, etc.); 4. Cardiovascular stent slicing, stone slicing and other medical tissue slicing; 5. Paleontology and bone fossil research; 6. Cutting of mechanical seals, sealing strips, sealing rings, oil seals, etc. for automobiles. |
If you are interested in our resistance wire tank furnace, please contact us for more information and quotation.
Tel: 185 3800 8121
Email: Lily@cysitech.com
Contact: Zhao Xiaoli
WeChat: 15617818691
Diamond Bandsaw Cutting Machine in the Cutting of Unhardened Ferrous and Non-ferrous Metals
The diamond bandsaw cutting machine, with its sharp, durable cutting edges and high-efficiency cutting capability, is widely used for cutting various metal materials, especially unhardened ferrous metals (such as carbon steel, alloy steel, etc.) and non-ferrous metals (such as aluminum, copper, magnesium alloys, etc.). These materials typically exhibit varying hardness and toughness, so precise cutting control is required to ensure cutting quality and efficiency.
Application Experiment Cases of Diamond Bandsaw Cutting Machine in Ferrous and Non-ferrous Metals:
1. Cutting Experiment of Unhardened Carbon Steel
Carbon steel is a common ferrous metal material used in industrial applications. Its hardness and toughness make it necessary to control the cutting process precisely. Especially in its unhardened state, carbon steel is easier to cut, but issues such as rough cutting surfaces and large heat-affected zones can occur.
Diamond bandsaw cutting machine with a cooling system.
Diamond band: Electroplated diamond band, with particle size of 50-70μm, suitable for metal cutting.
Material Preparation: Carbon steel sample with a thickness of 10mm.
Set Cutting Parameters: Cutting speed set to 0.1mm/s, feed rate set to 0.05mm/min to maintain cutting precision and minimize cutting surface damage.
Cooling: Use water-based coolant to maintain the temperature within an appropriate range and prevent localized overheating.
Cutting Process: The diamond bandsaw cuts the carbon steel with high precision, achieving a smooth surface without visible burrs or cracks.
Post-processing: The sample is cleaned to remove residues, and dimensional deviation is checked.
The cut carbon steel sample has a smooth surface, small dimensional deviation, and high cutting precision. The diamond bandsaw did not generate excessive heat or significant cutting damage during the process, and the cutting surface had minimal burrs, maintaining good processing quality.
