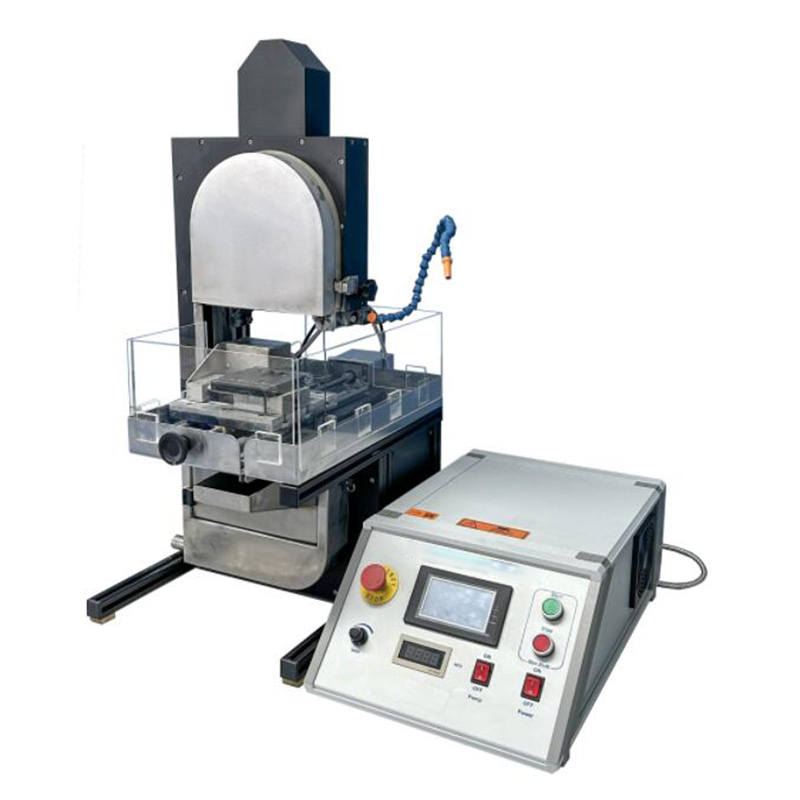

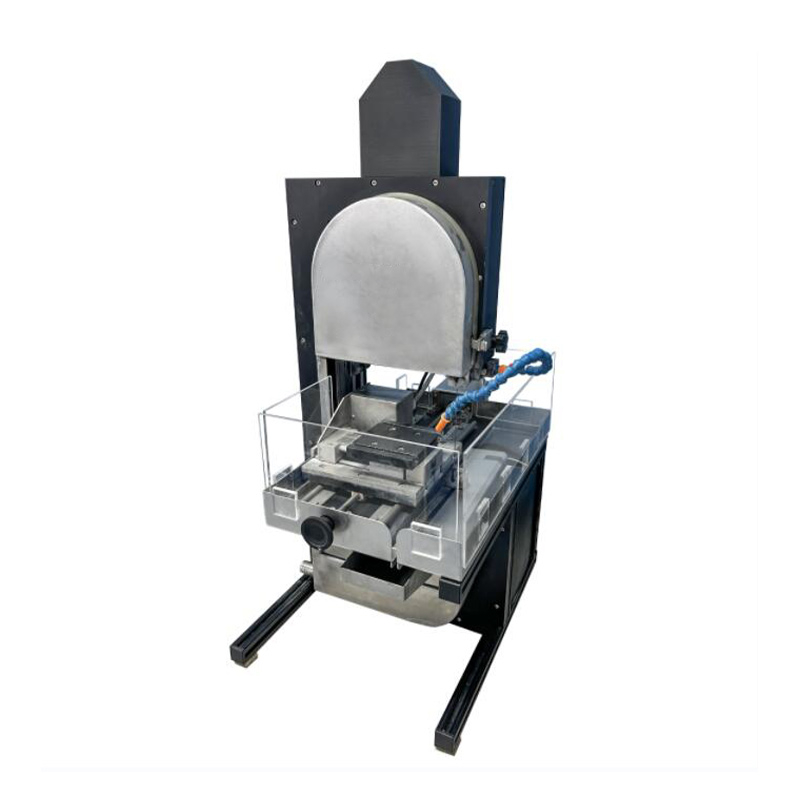

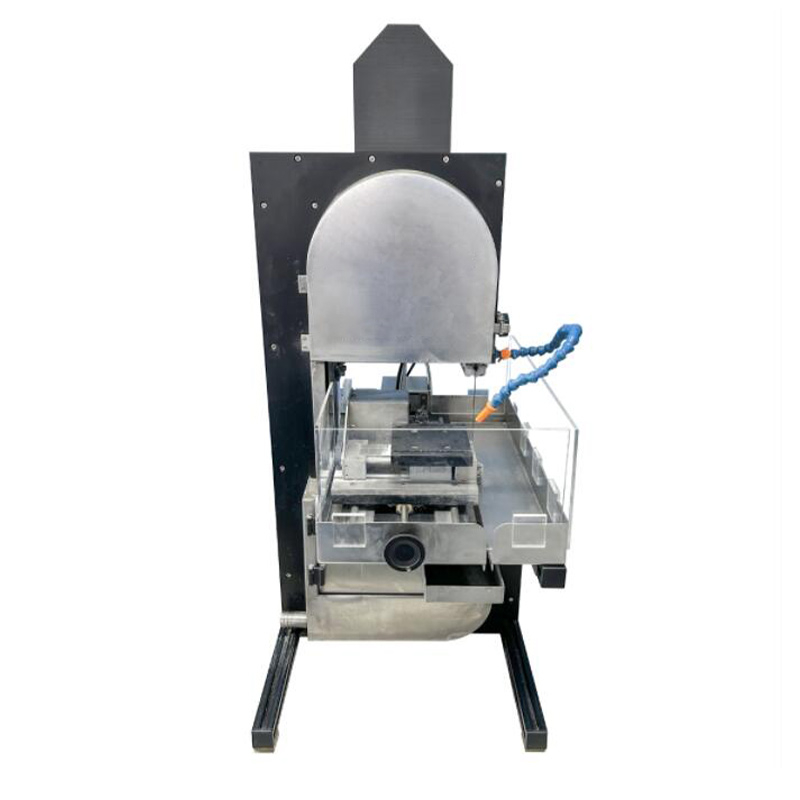

CY-D4000 Diamond Band Saw Cutting Machine is a small diamond band saw cutting machine, which features: small cutting arc, easy operation, and two cutting modes: manual cutting and automatic cutting.
This machine is suitable for cutting non-metallic materials such as glass, ceramics, jade, marble, etc. It can also be used for cutting and sampling of biomedical materials, such as orthopedics, dentistry, joint slicing or plasticized thin slices of soft and hard tissues of the body and organs. It can cut various geometric shapes such as straight lines and curves. It is one of the practical machines for the current production of arts and crafts and craft products.
Automatic cutting,Fast cutting speed, stable feed speed, thin damage layer on the cutting surface, and small dimensional deviation.
Product name | Diamond Band Saw Cutting Machine |
Product model | CY-D4000 |
Function and use | 1. Suitable for cutting non-metallic materials such as glass, ceramics, jade, marble, etc.; 2. Biological plasticized specimen slicing (human and animal organs, jaw soft and hard tissue slicing, implant observation, dental crowns and bridges, teeth and other histological specimens) 3. Orthopedic soft and hard tissue slicing (femur, hip joint, vertebral body and other living tissues and hard tissues, bone histological samples with implants, etc.); 4. Cardiovascular stent slicing, stone slicing and other medical tissue slicing; 5. Paleontology and bone fossil research; 6. Cutting of mechanical seals, sealing strips, sealing rings, oil seals, etc. for automobiles. |
Main parameters | 1. Saw blade linear speed: ≥16m/s 2. Cutting height max: 100mm 3. Cutting height max after installing X-axis automatic feeding device: 50mm 4. Manual cutting span max: 210mm 5. Normal incision width: <0.4mm 6. X-axis travel max: ≥50mm 7. X-axis feed indication accuracy: 0.01mm 8. Y-axis travel max: ≥180mm 9. Cutting times setting range: 1 to 99 times 10. Cutting speed range 0.05 to 30mm/min |
Product specifications | 11. Product specifications: Size: 410x580x950mm |
If you are interested in our resistance wire tank furnace, please contact us for more information and quotation.
Tel: 185 3800 8121
Email: Lily@cysitech.com
Contact: Zhao Xiaoli
WeChat: 15617818691
The diamond band saw cutting machine is increasingly used in cutting precious metals (such as gold, platinum, palladium, silver, etc.) in fields like jewelry processing, precious metal recovery, and electronics manufacturing. Precious metals typically have higher hardness and density, requiring high precision and low material loss during cutting. The diamond band saw cutting machine, with its efficient cutting performance and long service life, is an ideal choice for cutting precious metals.
Experimental Cases of Cutting Precious Metals:
1. Gold Cutting Experiment
Gold is a commonly used precious metal in jewelry processing and electronics, where high cutting precision and smooth cutting surfaces are required, with no cracks or defects.
Experimental Equipment:
Diamond band saw cutting machine, equipped with a water cooling system.
Diamond band: Electroplated diamond band with 20-30μm diamond particles.
Experimental Steps:
Material Preparation: Gold bars or sheets, typically with thickness between 0.5mm to 5mm.
Set Cutting Parameters: Adjust cutting speed and feed rate according to the hardness and thickness of gold. Common cutting speeds range from 0.1 to 0.5mm/s, and feed rates are between 0.05mm/min and 0.1mm/min.
Cooling: Use water or cutting fluid to cool the material and prevent excessive heat buildup during the cutting process, avoiding deformation or oxidation of the gold.
Cutting Process: The diamond band saw starts cutting according to the predetermined path, ensuring smooth, crack-free cut surfaces.
Post-processing: Clean the cut surface to remove any oxidation or impurities, followed by polishing if necessary.
Experimental Results:
The cut gold material has smooth edges and no visible cracks or damage. The surface roughness of the cut surface is controlled within Ra 0.1-0.3μm, making it suitable for further processing or surface treatment.
