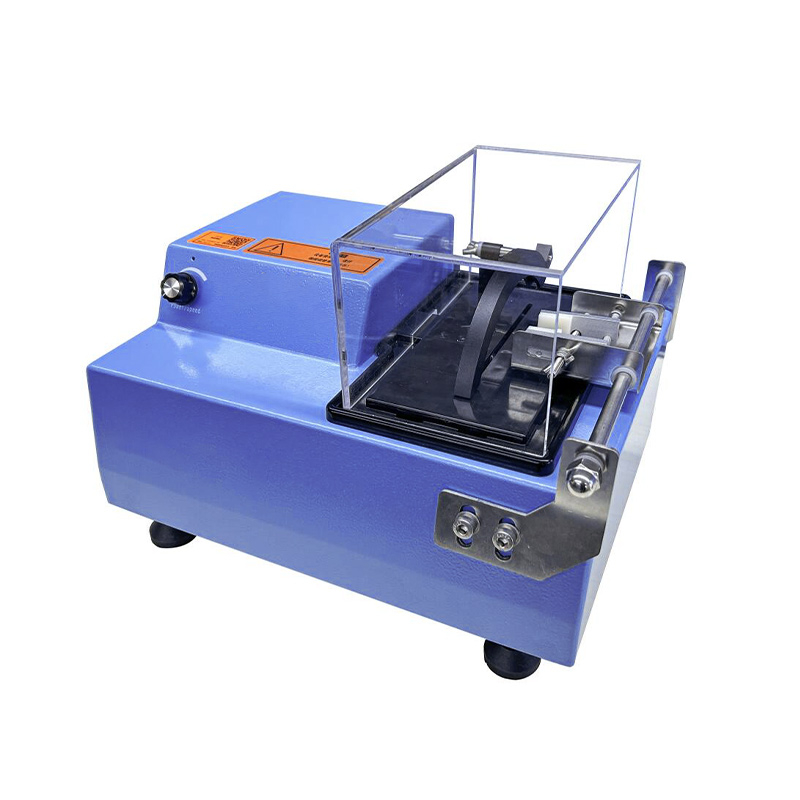

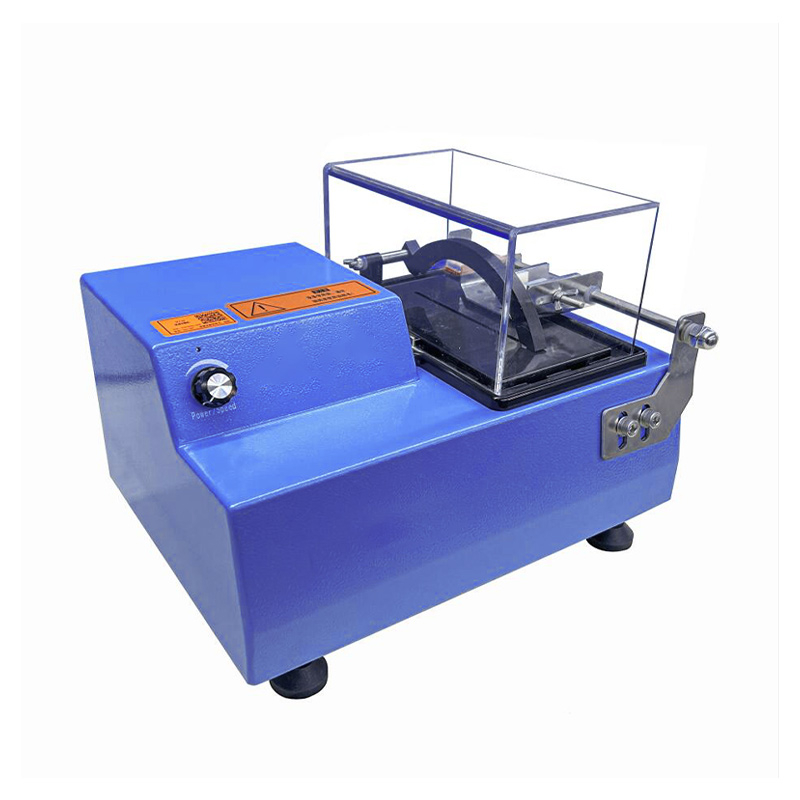

CY-40 fast cutting machine is used for rough processing of crystal, ceramic, quartz glass, PCB board, rock sample, mineral sample and metallographic sample, etc. The machine is suitable for processing a wide range of materials, suitable for colleges and universities, scientific research institutes.
CY-40 fast cutting machine adopts a stepless speed regulating device, which can adjust the rotation speed of the saw blade according to the material to be cut.
It has low noise, little pollution to the environment and convenient cleaning during the working process.
The machine is simple in operation, safe and reliable, small in size, and can save laboratory space.
Easy to handle, and corrosion resistance, no rust.
Cooling water added to the chassis will not flow out, saving water.
The machine can cut horizontally in a straight line, the cutting speed is manually controlled, the sample is cut forward with the advance of the hand, the cutting speed is fast.
If you are interested in our Fast speed cutting machine, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Product name | Fast speed cutting machine |
Product model | CY-40 |
Installation condition | 1. Temperature and humidity: 10-85%RH (at 25℃ no condensation) Temperature: 0-45℃. 2. There is no strong source and corrosive gas around the equipment. 3. Power supply: National standard three-pole socket AC100~240V 50/60Hz 10A must have a good grounding cable |
Main parameter
| 1. Power supply port: DC24V 11.67A (standard "Power adapter") 2. Drive motor parameters: DC24V 90W 5.2A 2500rpm (MAX) 3. Spindle speed (effective value) : 650-2500rpm 4. Saw blade size: Ø100mm 5. Processing size max (truncation surface) : 25mm×40mm 6. Product specifications: · Size: 390×285×290mm · Weight: 7kg |
Note: 1. Power Adapter specifications: IN: AC100-240V 50/60Hz OUT: DC-24V 11.67A, the actual power supply of the device is subject to the label affixed to the back of the product. 2. Non-standard fixture pad can be designed and processed according to user requirements. | |
Serial number | Name | Quantity |
1 | Saw clamping pad (Ø38mm×Ø12.7mm) | 1set |
2 | Electroplated diamond saw blade (Ø100mm×Ø12.7mm×0.4mm) | 1piece |
3 | Silicon carbide saw blade (Ø100mm×Ø12.7mm×0.4mm) | 5pcs |
4 | Corundum saw blade (Ø100mm×Ø12.7mm×0.4mm) | 5pcs |
5 | Cutting cooling powder | 100g |
The application field of fast cutting machine is very wide, the following are some of the main application industries:
1. Sheet metal processing industry : Laser cutting machine because of its cutting speed, high flexibility level, is widely used in sheet metal processing industry, for cutting sheet metal, such as stainless steel, carbon steel, aluminum plate and so on.
2. Automobile manufacturing : In the automobile manufacturing, the fast cutting machine is used to cut the body parts, the seat skeleton, the door panel and other parts to ensure the accuracy and quality of the parts.
3. Aerospace industry : Due to the high requirements for material cutting accuracy and surface quality, fast cutting machines play an important role in the aerospace field, used to manufacture engine blades, turbine disks, aerospace structural parts, etc.
4. Fitness equipment industry : The diversity of fitness equipment puts forward high requirements for processing, and the fast cutting machine can customize flexible processing for different pipes and plates because of its high flexibility.
5. Advertising metal word industry : In the advertising production industry, the fast cutting machine is used to cut advertising fonts and other materials, due to high processing accuracy, reducing the probability of rework and improving work efficiency.
6. Electronic manufacturing industry : The precision of material cutting in the manufacturing of electronic components is extremely high, and the fast cutting machine has become an important equipment in the manufacturing of electronic components because of its high precision and small heat affected zone.
7. Medical device manufacturing : Medical device manufacturing has high requirements for the accuracy and cleanliness of materials, and rapid cutting machines are widely used in the manufacture of surgical instruments, implants and medical equipment shells because of their non-contact processing and high-precision cutting characteristics.
8. Stone and glass processing : Water knife cutting machine is widely used in stone and glass processing, because it does not produce heat, avoiding the problem of thermal deformation and cracking of materials.
9. Scientific research experiments : Automatic metallographic cutting machine is used in scientific research experiments in metal material analysis, chip preparation, geological exploration and biomedical fields, providing standard samples to accelerate the output of results.
10. Metal processing, non-metal processing, composite material processing : Automatic cutting machines are used in these fields to improve production efficiency and product quality.
These application areas demonstrate the important role and wide applicability of rapid cutting machines in modern industry and scientific research.
